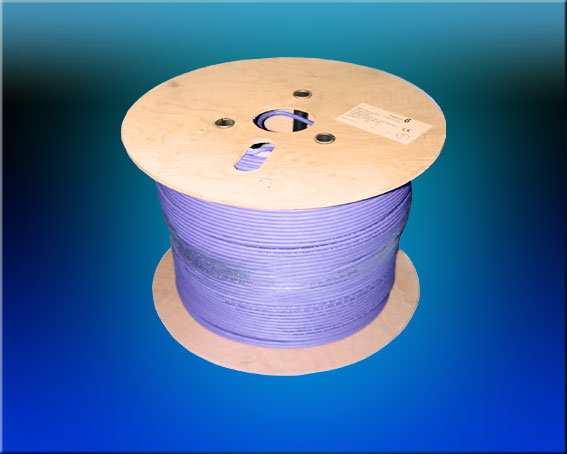

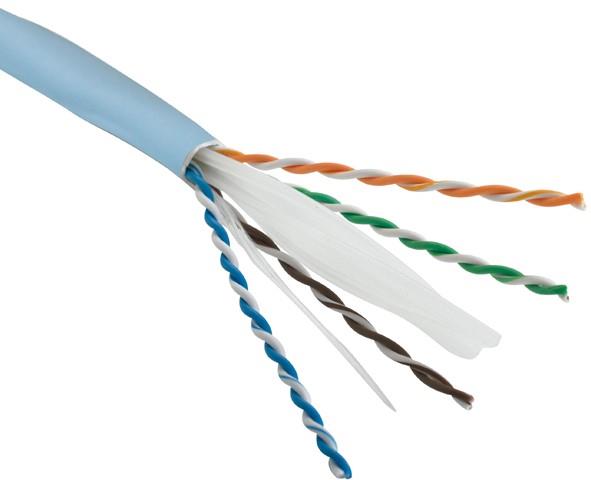

CAT6 550MHz UTP Solid Cable
These new generation of category 6 UTP cable can potentially transmit data at rates several times faster than ultra enhanced Category 5 cable.
It is designed with headroom for tomorrow’s emerging high-speed LAN technologies.
Product Description:
Conductor : 23AWG Bare Copper Stranded
Insulations : HDPE,FRPE
Ripcord : Under jacket
Jacket : FRPVC or LSFROH
Non-Plenum are CMR flame rated
Product Electrical Characteristics:
Impedance : 100+/-15ohms
Mutual capacitance, max. Nf/1000ft : 17.1
DC Resistance, max.Ohms/1000ft : 28.6
DC Resistance Unbalance of apair : 5% max.
Capacitance Unbalance (Pair to Ground): 330pf/100m max.
Propagation delay Skew : 25ns/100M.
Normal Velocity of Propagation : 66%
Industrial Standards :
UL/CSA Listed CMR
UL and ETL verified to ANSI/TIA/EIA-568/B.2.1 Cat6
ISO/IEC-11801
NEMA WC 63.1
EN50173
Applications :
10 BaseT, 100BaseTX, 1000BaseT
4-16Mbit Token Ring
622-155Mbit ATM
ISDN
Analog Voice
