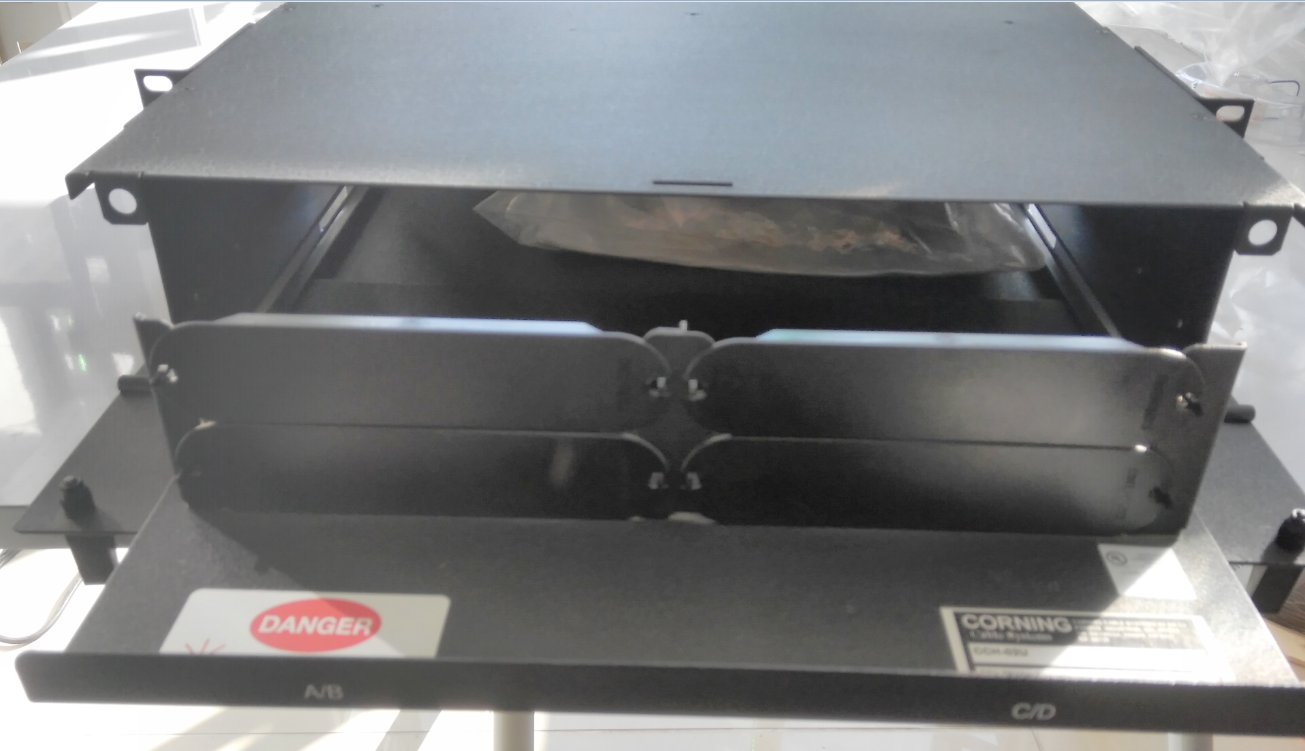

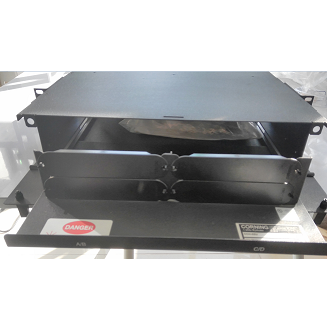

Pretium® Connector Housing (PCH)
2 rack unit, holds 4 CCHE Panels + MFT Tray holder with 4 MFT Trays capacity.
The rack-mount Pretium® Connector Housings (PCH) are available in 1U, 2U and 4U sizes and mount in 19-
in racks or cabinets. Combined with the modules, panels, harnesses, trunks and jumpers, they provide a
tip-to-tip solution for your fibre optic network.
Features and Benefits
Compatible with Plug & Play™ Systems modules, Designed to support Plug & Play Systems applications
Splice in the housing, Saves rack space and the cost of the second housing
Removable top (1U, 2U), Maximizes ease of access
Transparent front door (04U and 02U), Permits viewing while protecting installed patch cords
Large removable fiber guides in front, Effectively manage high patch cord densities
Standards :
RoHS Free of hazardous substances according to RoHS 2002/95/EG
UL-Listed
Specifications :
General Specifications ;
Application : Enterprise Networks, Data Centre
Mounting Type : Rack 19”, Rack 23”
Product Type : Rack-Mountable Hardware
Mounting Technology : Protruding
Access Type : Front access fixed
Lockable : yes, front and rear side
Design - Hardware :
Housing Type : PCH
Height Unit : 2U
Cable entry type : Slotted
Splice Tray Type : MFT
Housing Material : Metal
Housing Colour : Dark metallic grey
Mechanical characteristics :
Dimensions (HxWxD) : 90 mm x 430 mm x 420 mm
Weight : 5.9 kg
Ordering Information :
Part Number : PCH-02U-SPL
Product Description : PCH Housing, 2U, dark metallic grey, 4 CCHE Panels capacity
+ MFT Tray holder with 4 MFT Trays capacity
Shipping Information :
Packing dimensions (L x W x H) : 600 mm x 580 mm x 160 mm
Shipping Weight : 9.5 kg
Units per Delivery : 1/1
