Overview
Highlights

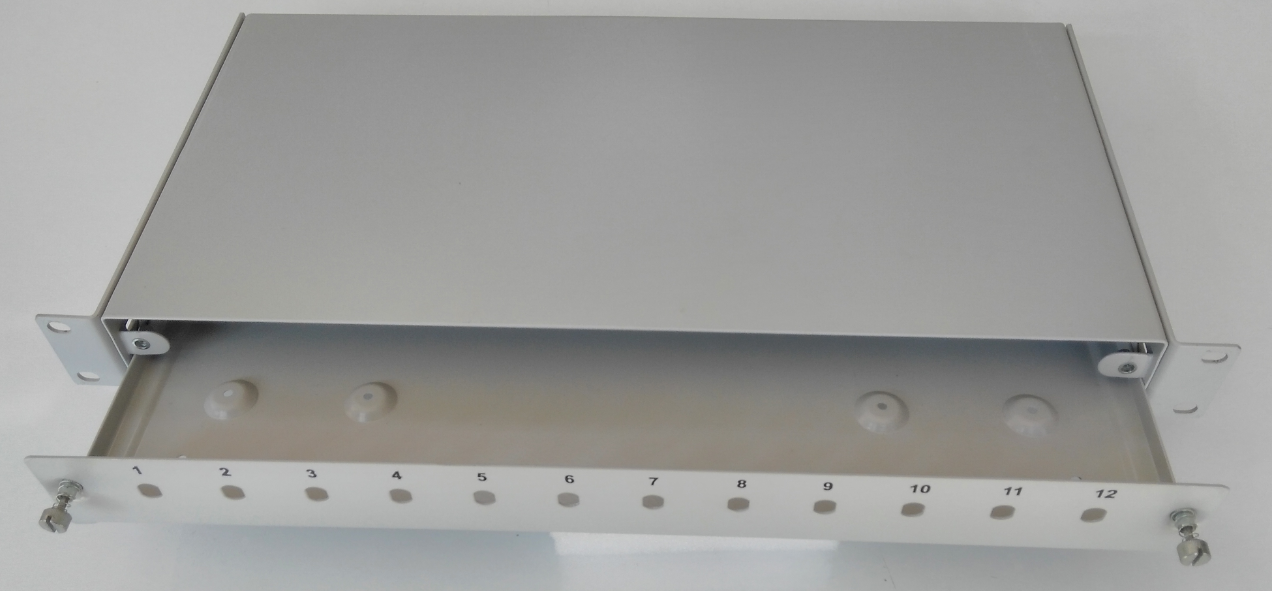

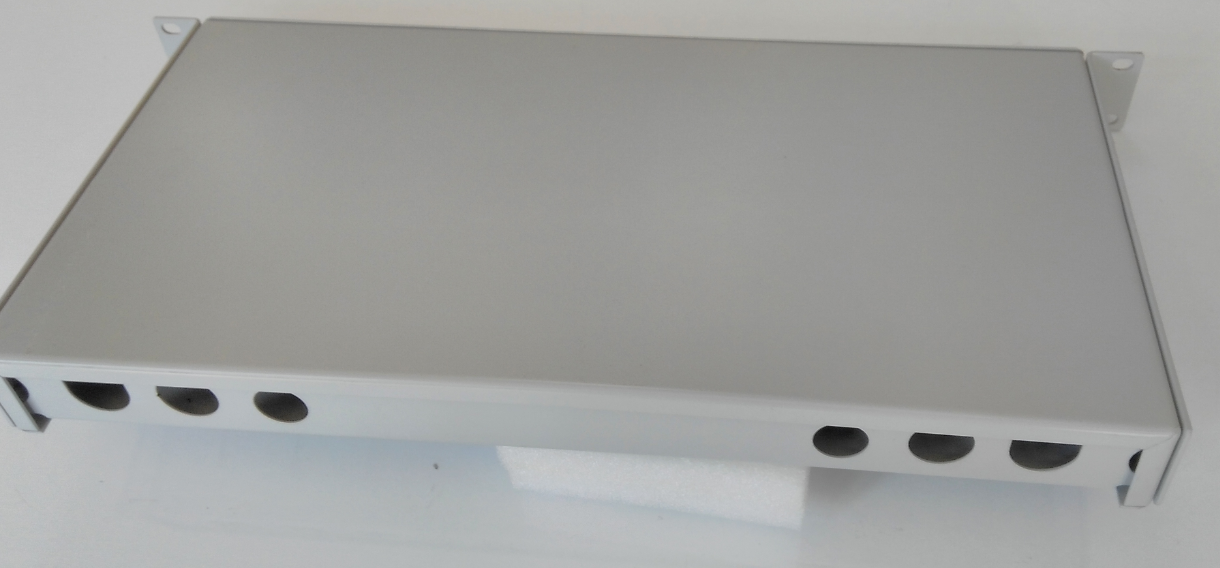

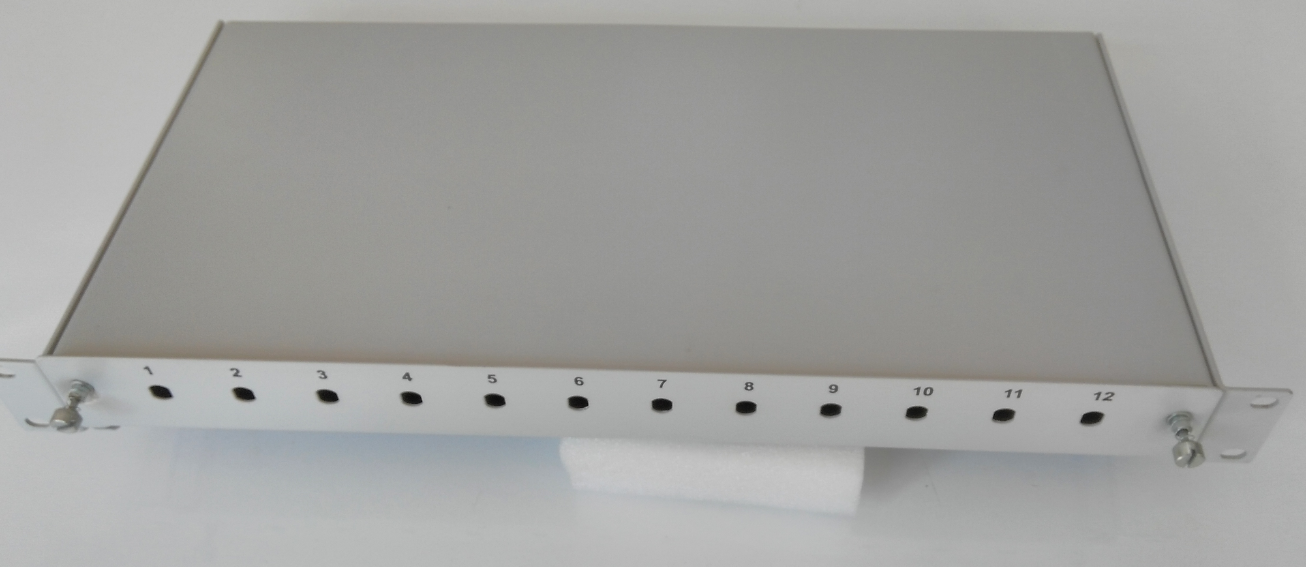

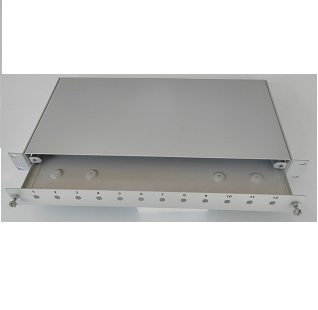

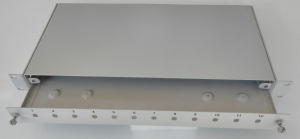

1U and 2U versions (12,24, 36 and 48 port capacity)
Smooth and convenient mechanical sliding system
Manages small & large quantities of fiber with a high packing density
Cable glands to secure the incoming fiber, allows min movement
Fiber guide tubes to protect and direct the fibers to the cassettes in a professional way
Minimum bend radius of fibers and strain relief for all entry cables
Fiber bend radius control - < 35mm
Capacity of up to 48 ports
All known connector types such as SC, FC, ST, E2000, LC, MU etc. are possible.
Dimensions : (19”) 482 mm (W) x 254 mm (D) x 1U (H)
Material : Mild Steel
Color : Powder coat RAL7035 or RAL9005
Weight : 2 kg
Maximum port capacity : 48 ports
Dimensions : (19”) 482 mm (W) x 254 mm (D) x 1U (H)
Material : Mild Steel
Color : Powder coat RAL7035 or RAL9005
Weight : 2 kg
Maximum port capacity : 48 ports
