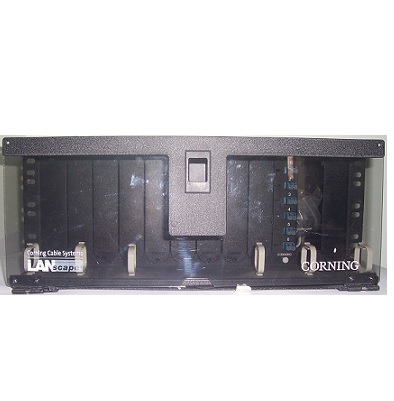

Pretium® Connector Housing (PCH)

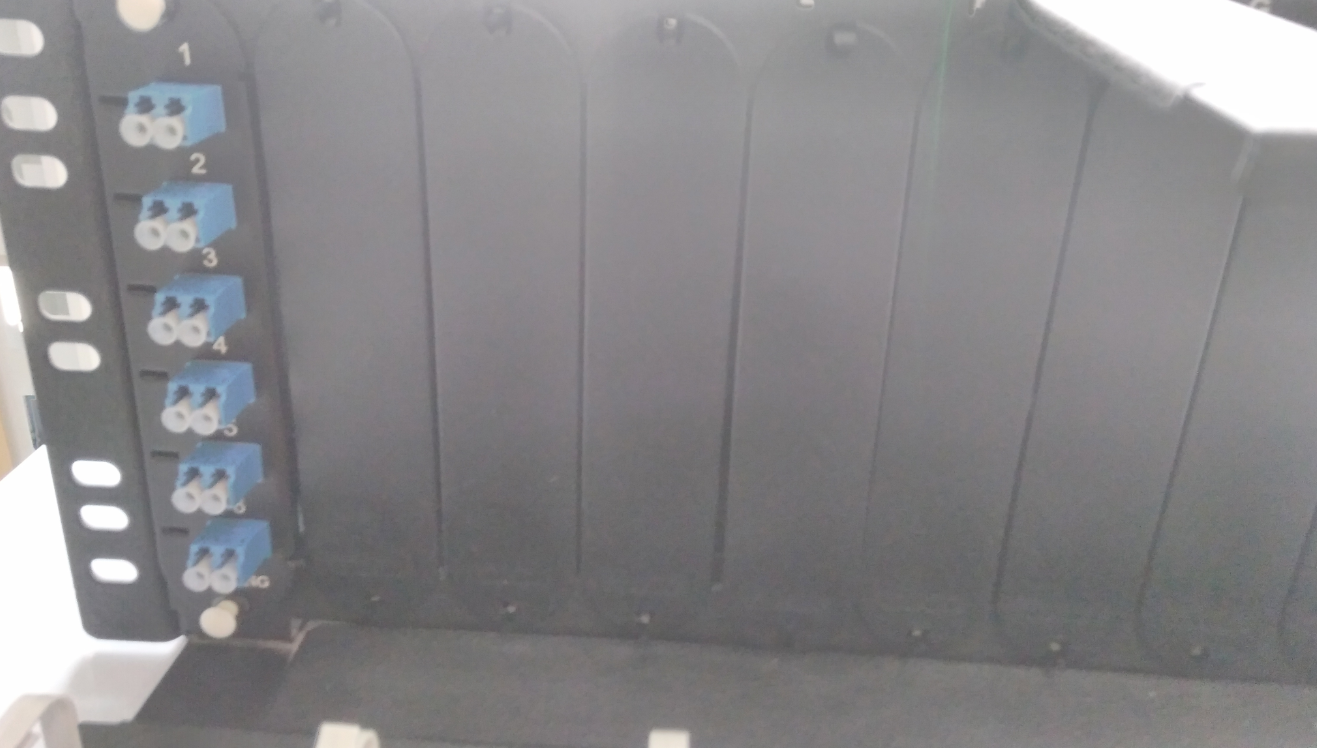

4 rack unit, holds 12 CCHE Panels + MFT Tray holder with 12 MFT Trays capacity.
The rack-mount Pretium® Connector Housings (PCH) are available in 1U, 2U and 4U sizes and mount in 19-
in racks or cabinets. Combined with the modules, panels, harnesses, trunks and jumpers, they provide a
tip-to-tip solution for your fibre optic network.
Features and Benefits
Compatible with Plug & Play™ Systems modules, Designed to support Plug & Play Systems applications
Splice in the housing, Saves rack space and the cost of the second housing

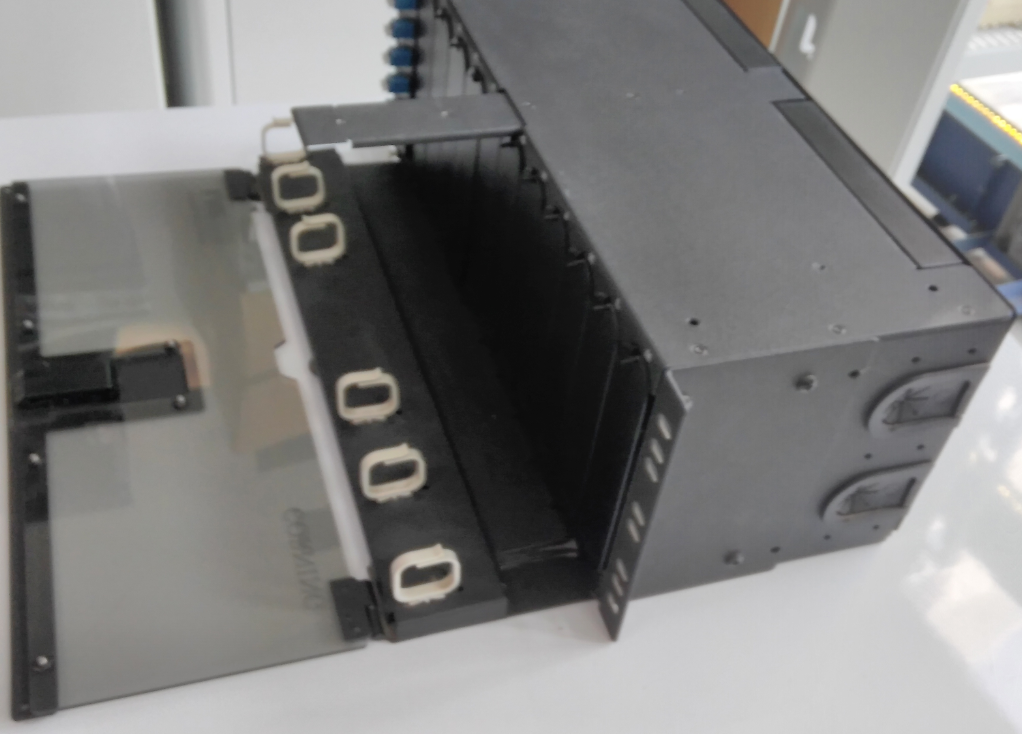

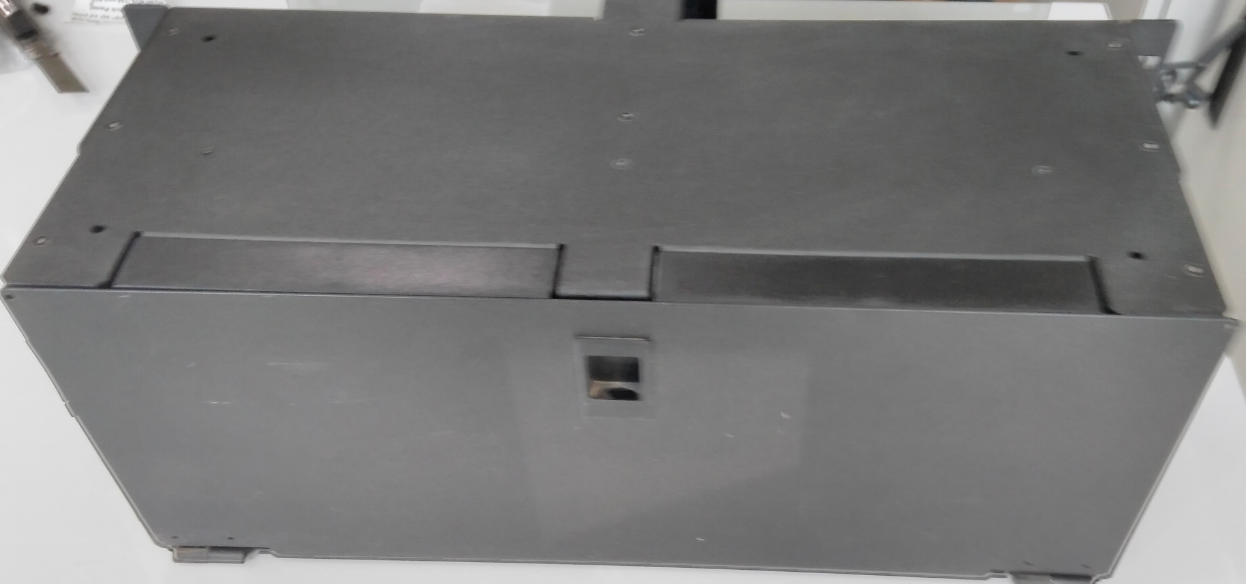

Removable top (1U, 2U), Maximizes ease of access

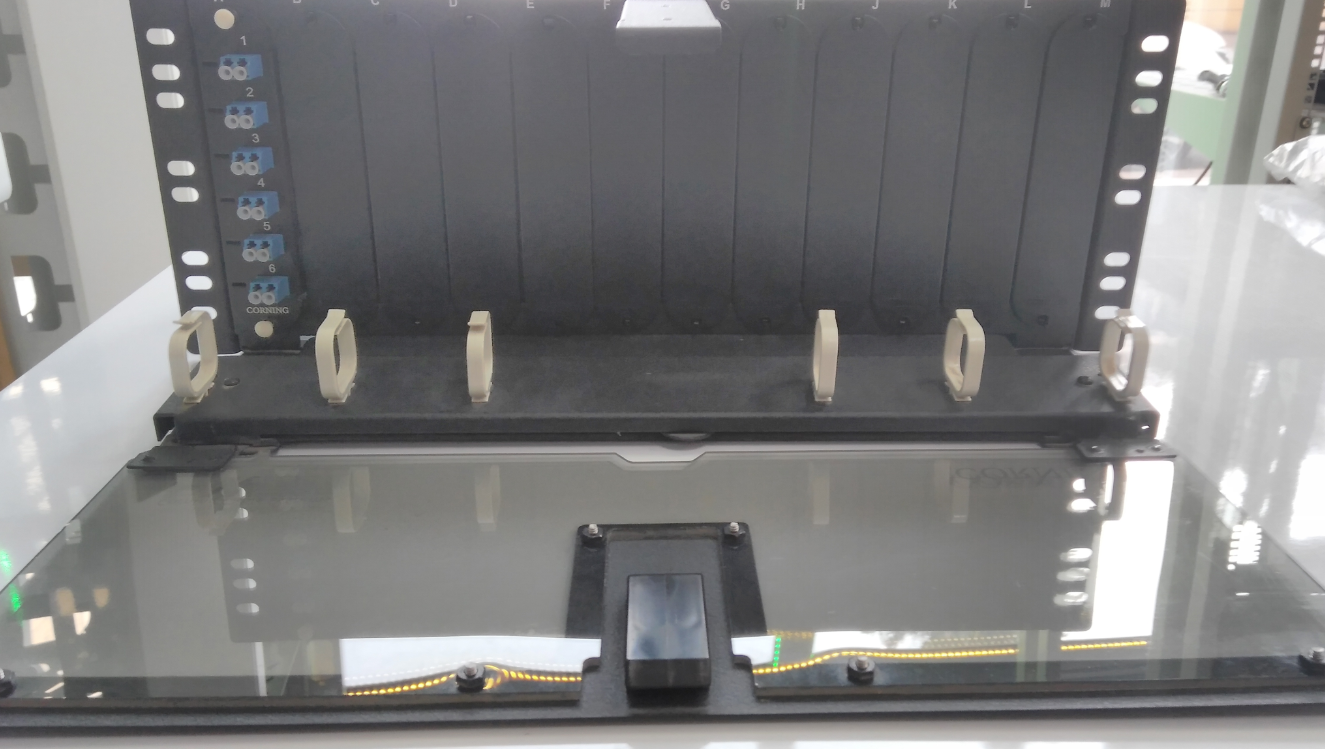

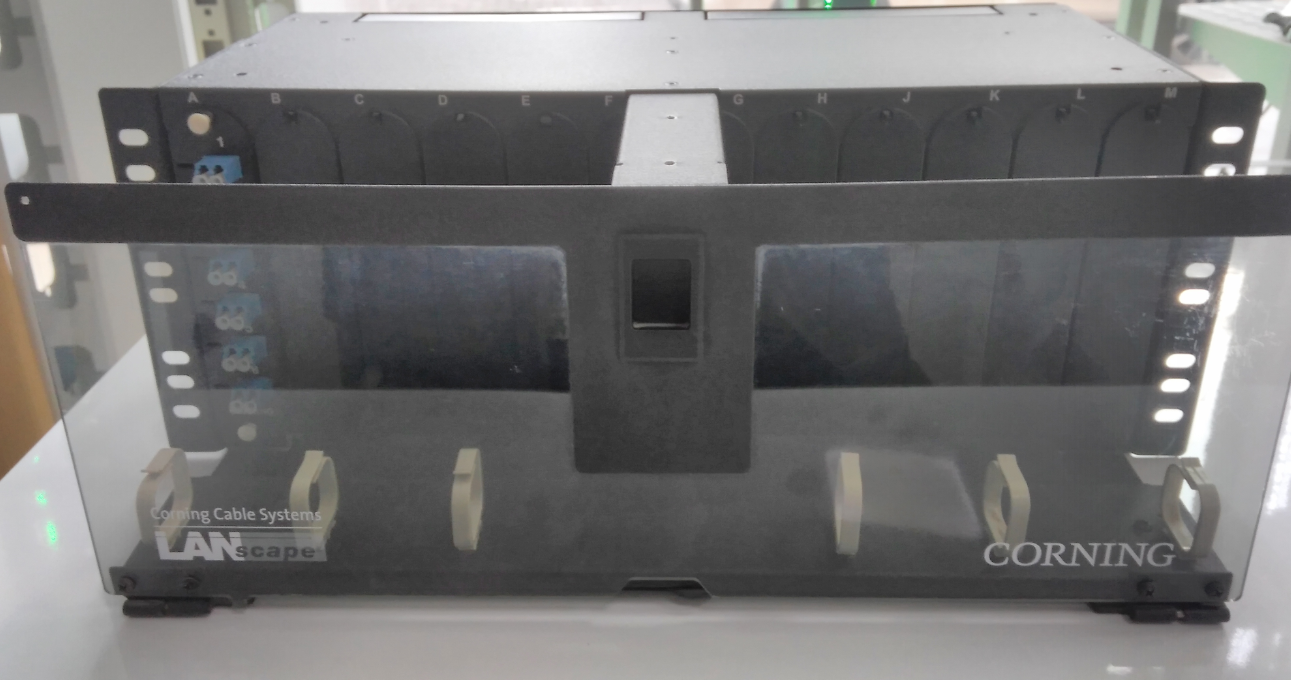

Transparent front door (04U and 02U), Permits viewing while protecting installed patch cords

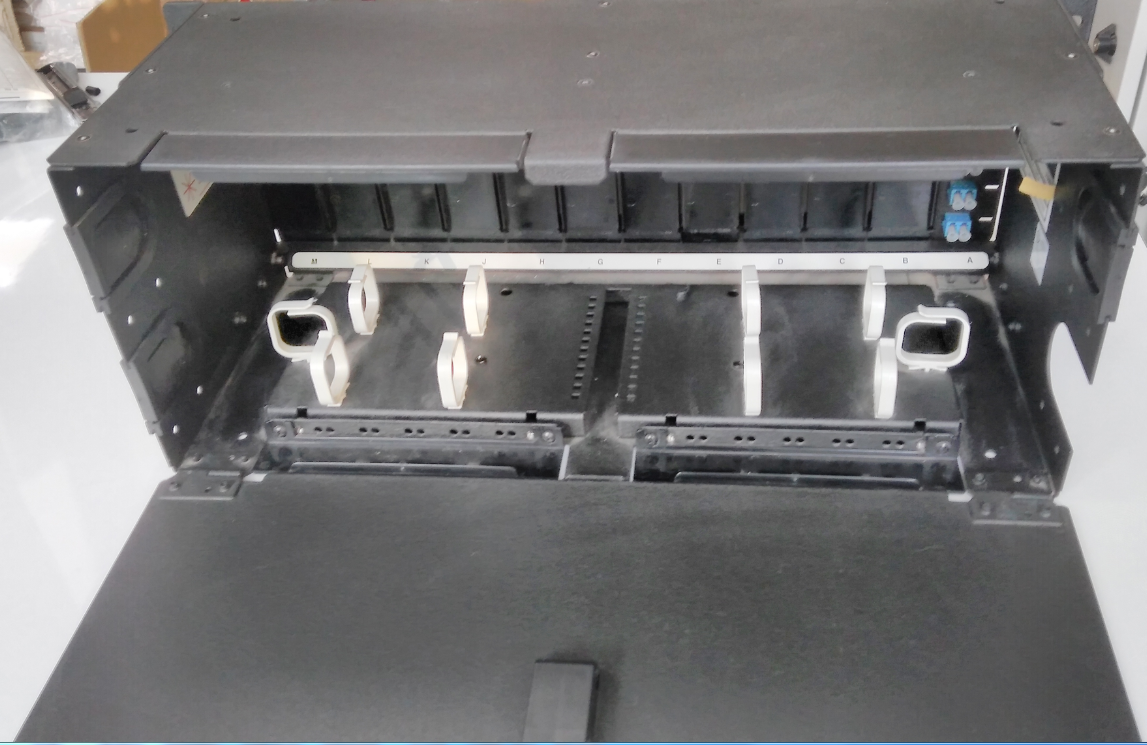

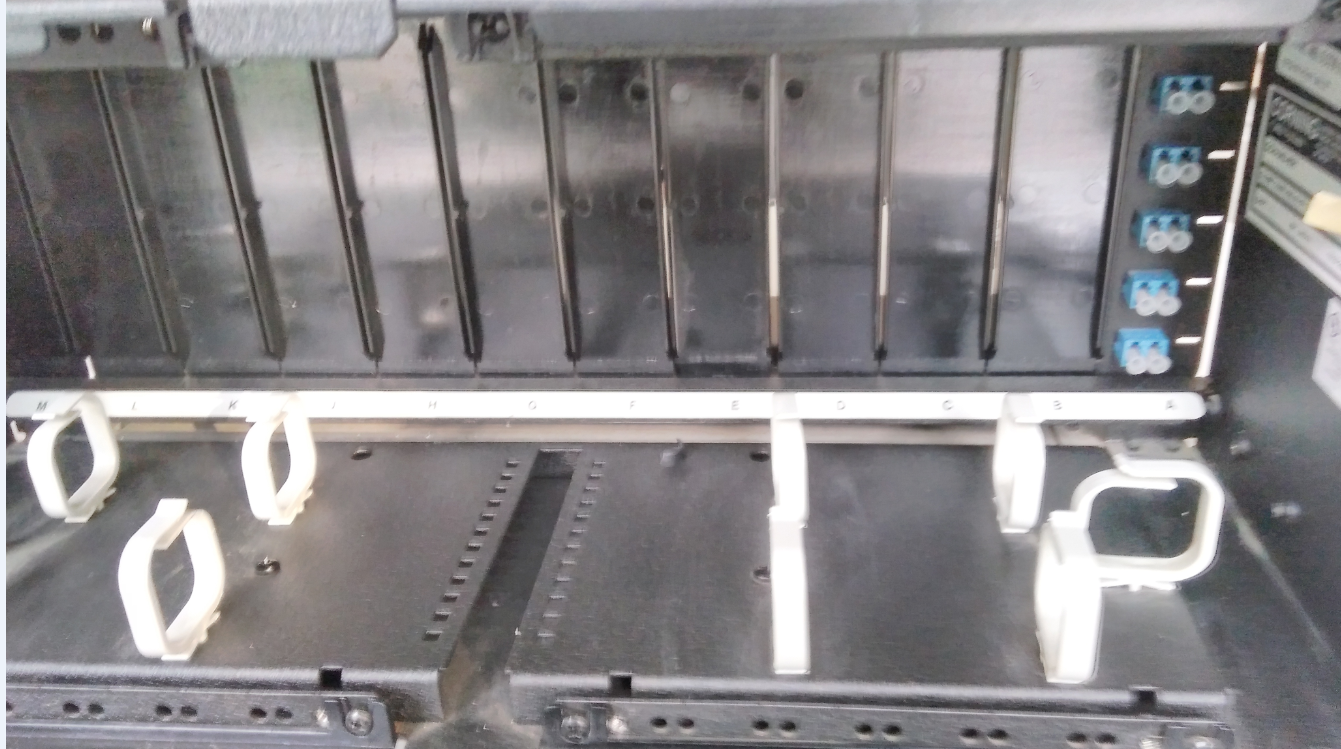

Large removable fiber guides in front, Effectively manage high patch cord densities
Standards :
RoHS Free of hazardous substances according to RoHS 2002/95/EG
UL-Listed
Specifications :
General Specifications ;
Application : Enterprise Networks, Data Centre
Mounting Type : Rack 19”, Rack 23”
Product Type : Rack-Mountable Hardware
Mounting Technology : Protruding
Access Type : Front access fixed
Lockable : yes, front and rear side
Design - Hardware :
Housing Type : PCH
Height Unit : 4U
Cable entry type : Slotted
Splice Tray Type : MFT
Housing Material : Metal
Housing Colour : Dark metallic grey
Mechanical characteristics :
Dimensions (HxWxD) : 180 mm x 432 mm x 410 mm
Weight : 9.2 kg
Ordering Information :
Part Number : PCH-04U-SPL
Product Description : PCH Housing, 4U, dark metallic grey, 12 CCHE Panels capacity
+ MFT Tray holder with 12 MFT Trays capacity
Shipping Information :
Packing dimensions (L x W x H) : 570 mm x 520 mm x 260 mm
Shipping Weight : 9.6 kg
Units per Delivery : 1/1
